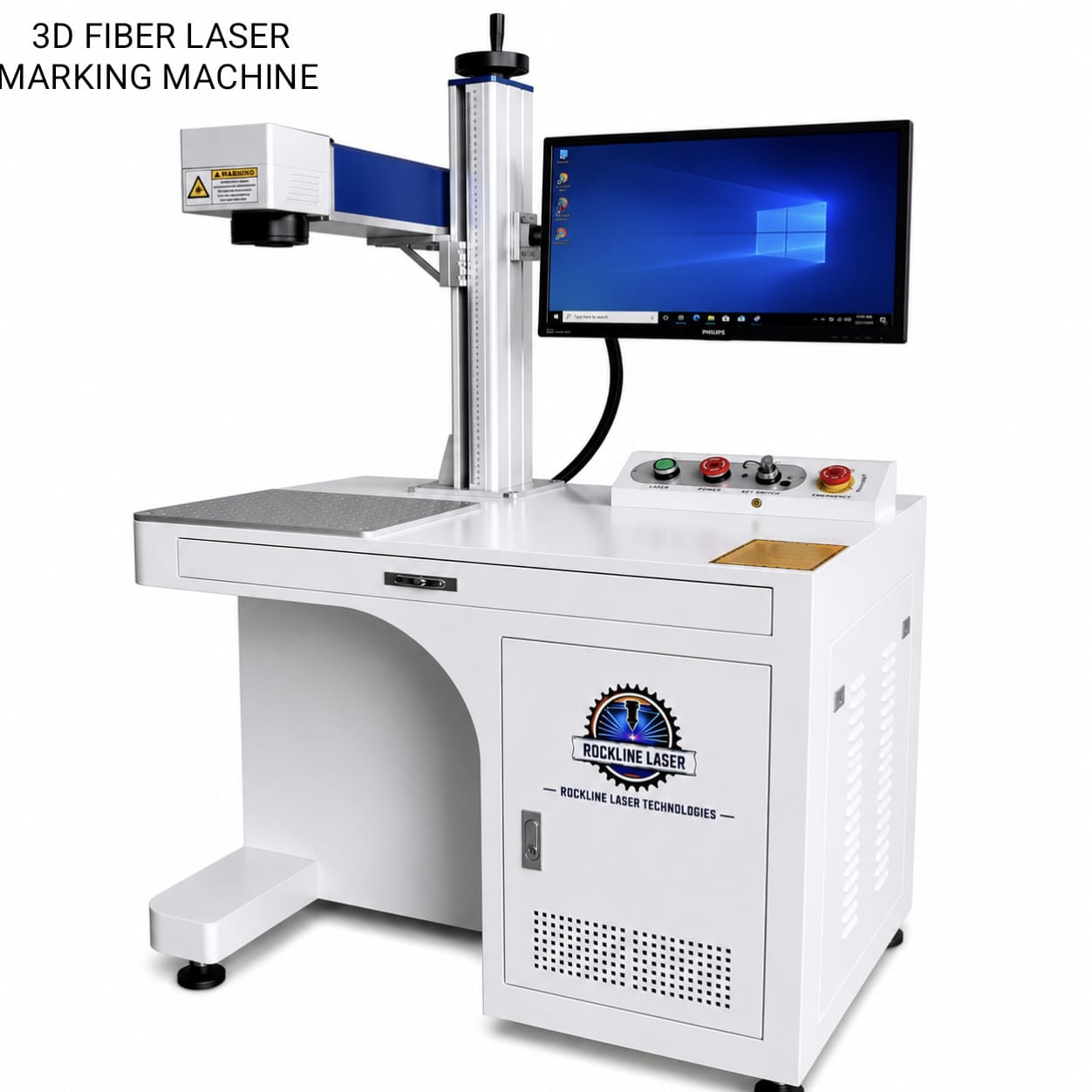

Contact Expert NowRockline 3D Fiber Laser Marking Machine is designed to perform accurate laser marking on flat as well as three-dimensional surfaces. The machine automatically adjusts the focal position to maintain excellent marking quality on curved and irregular products. It is widely used for automotive components, molds, tools and industrial parts.
| Laser Power | 20W, 30W, 50W, 60W, 100W |
|---|---|
| Laser Type | Fiber Laser |
| Wavelength | 1064 nm |
| Marking Area | 110×110 mm, 150×150 mm, 175×175 mm, 200×200 mm (Optional) |
| 3D Working Area | ±10 mm / ±20 mm / ±30 mm / ±50 mm (Optional) |
| Marking Speed | ≤ 7000 mm/s |
| Repeat Accuracy | ±0.001 mm |
| Min. Line Width | 0.01 mm |
| Min. Character | 0.11 mm |
| Marking Depth | 0.01–1.2 mm (Material Dependent) |
| Cooling System | Air Cooling |
| Power Supply | AC 220V ± 10% / 50Hz |
| Supported Format | PLT, DXF, BMP, JPG, PNG, AI, DST, etc. |
| Machine Dimension | 800 × 600 × 1400 mm (L × W × H) |
| Weight | Approx. 80–100 kg |
